Active Survey Test by iPerf

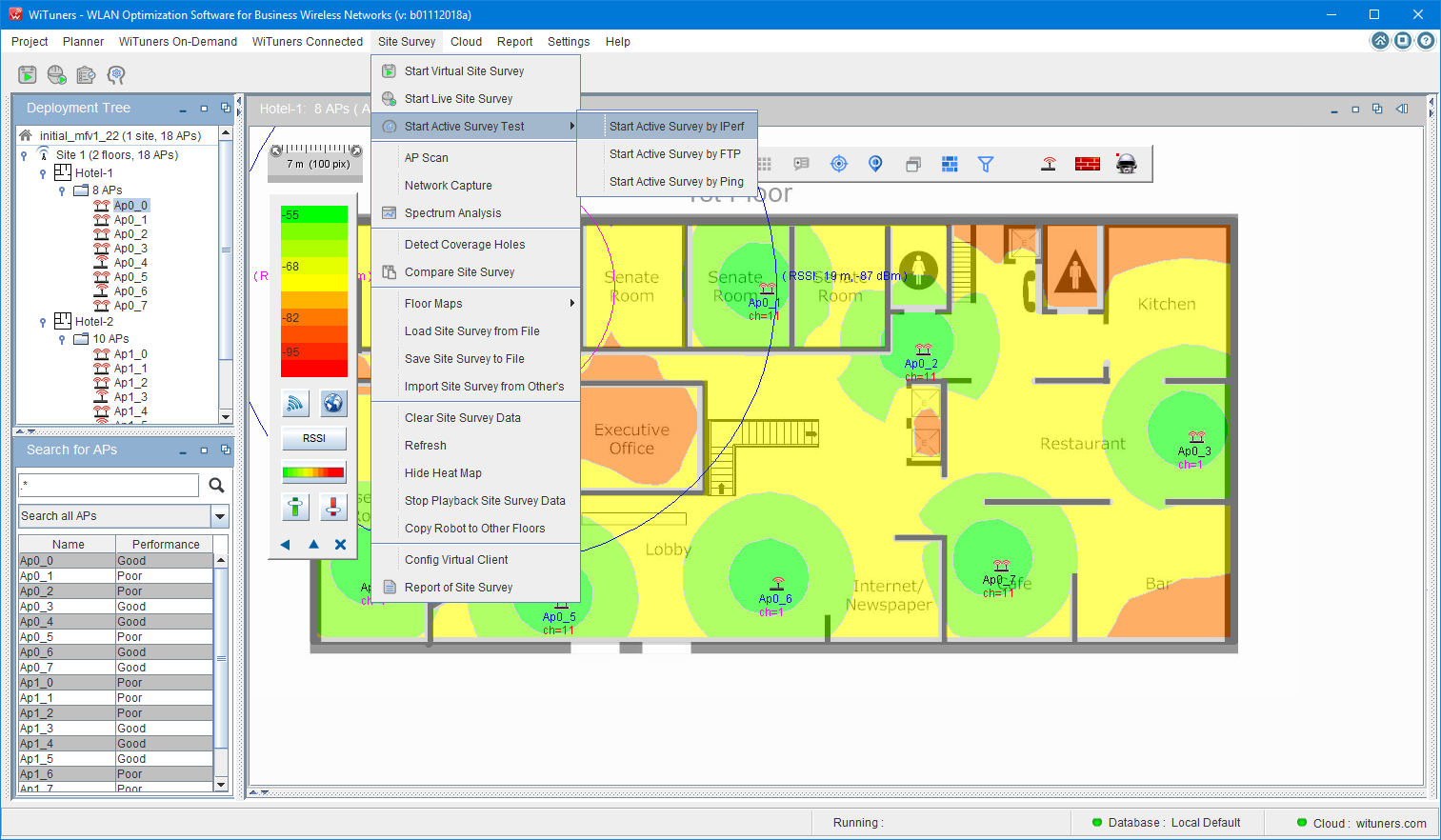

Clicking on "Site Survey" on System Menu Bar, then select "Start Active Survey Test"-->"Active Survey Test By iPerf", the "Active Survey Test By iPerf" window comes up to front as below:

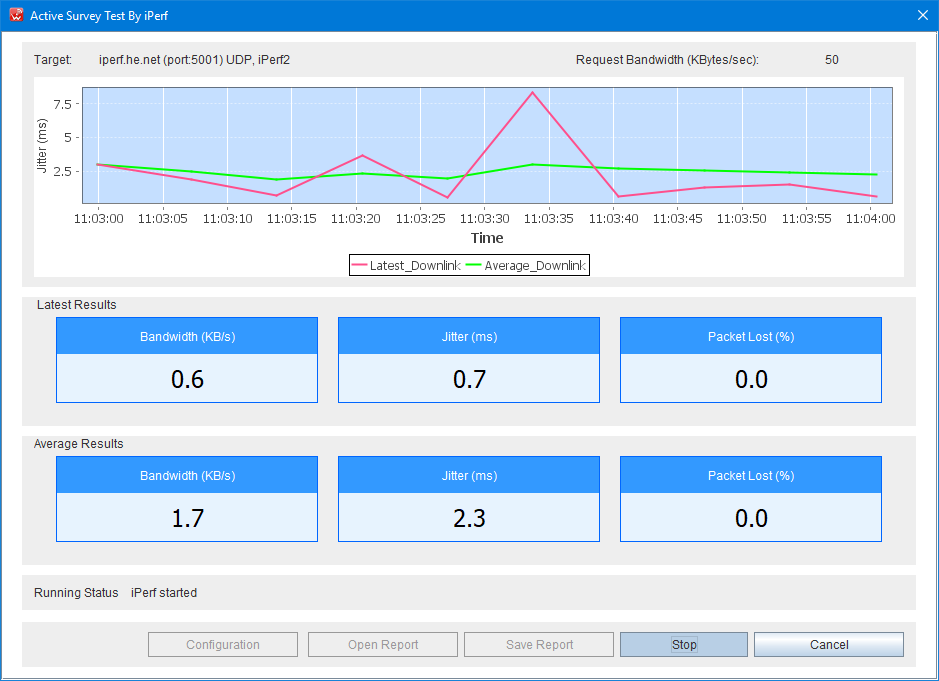

1. The window of Active Survey Test By iPerf
On the top of the window, it is the information bar for the configuration of the iPerf test.
The next is the chart for the test running, it shows both line of the latest data line and average data line for the test with "Repeat" model checked, if the iPerf3 with "R" reverser mode is running, the chart shows four of lines with latest lines and average lines for both of down-link and up-link mode.
The beneath of the chart are running data for latest results and average results.
The next of the running data is running status bar, it displays the running status of the current iPerf test.
The control buttons at the bottom of the window, users can click on the buttons to start a function for the iPerf test, such as start/stop a test, configuration for a test, or open/save the test to a PDF report file, when "Cancel" button is clicked, the test stops and the window is closed, the system is back to WiTuners Main Windows.

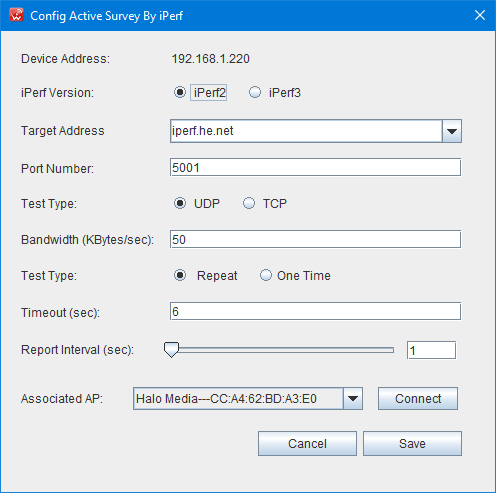

2. The window of configuration for Active Survey Test By iPerf
When "Configuration" button is clicked, the configuration windows comes up to front to set the test as below:
Most of parameters for an iPerf test can be setting by the configuration windows. Users can select a specific access point for the test to be connected on the Associated AP list, which scanned all of available APs in the range of network adapter in your computer, automatically.
Notes: if users select iPerf3 with Bi-directional checked to run a test, the test will be run both a test with "R" for up-link results and a test without "R" for down-link results, separately.
2. The window of "Save Report"
When "Save Report" button is clicked, the windows comes up to front to set the report as below:

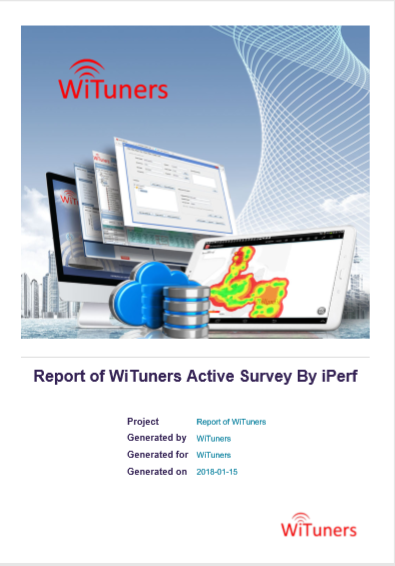

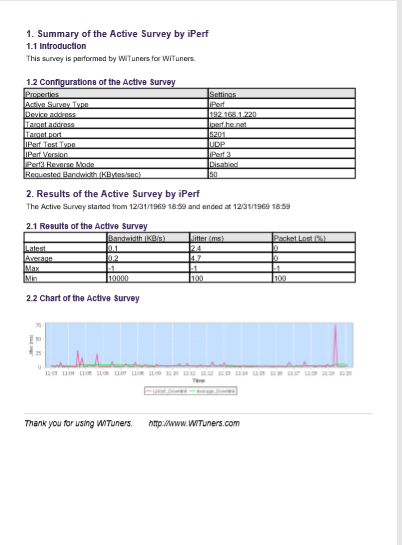

Users can customized your test PDF report by the window, after clicked "Generate" button, a customized the report will be opened as below.

|
